Control Plane Overview

Control Plane Overview#

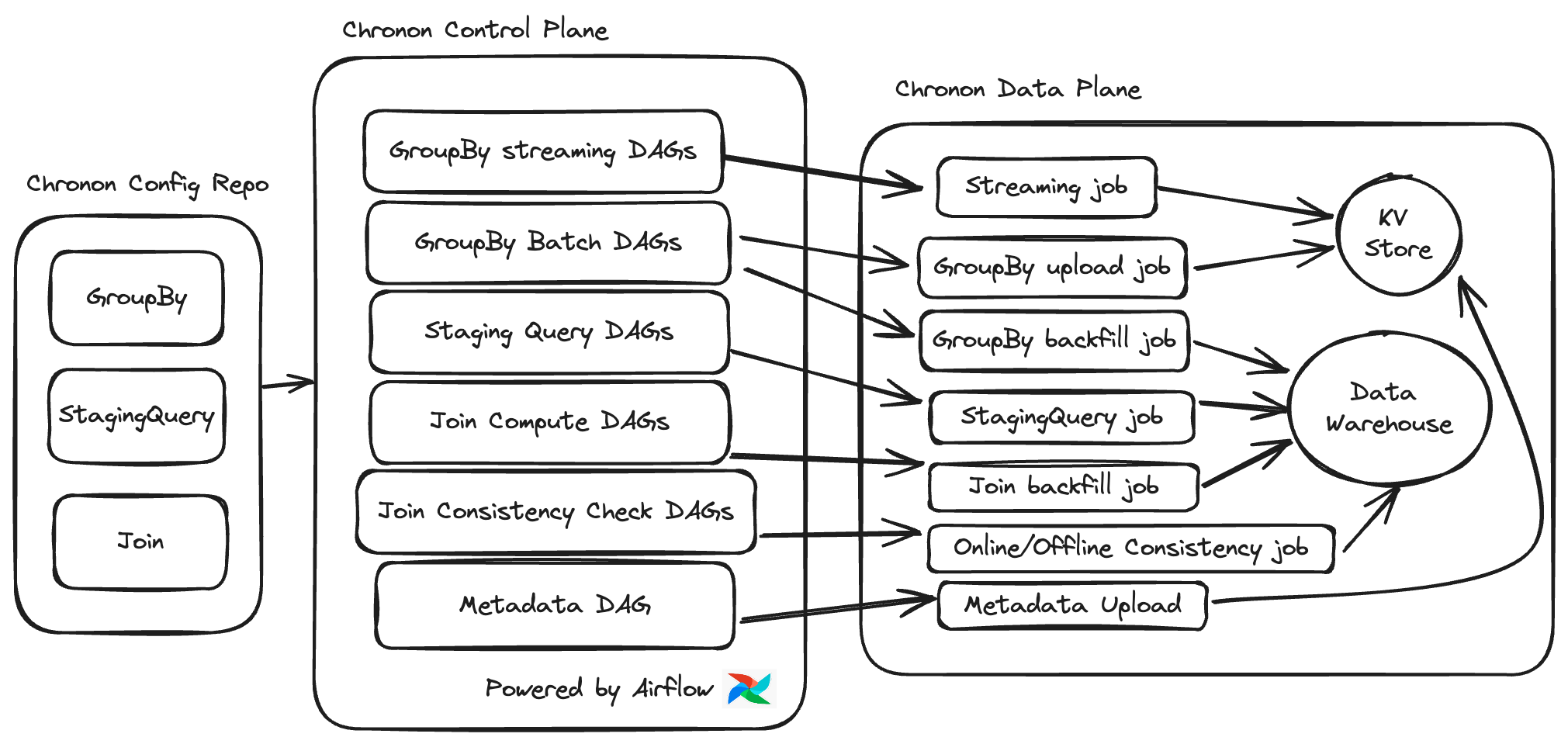

All the jobs that Chronon runs are driven by the configs in the Chronon repo. The orchestrator (Airflow by default) is configured to read the files in the repo and kick off a number of jobs to drive data and metadata flows. This is illustrated below:

Overview

At a high level, the flow is config (GroupBy/Join/StagingQuery) -> control plane action -> data plane action/result. The production DAGs run these actions based on certain triggers for each config type (i.e. upstream data landing), however, these control plane actions can also be triggered manually using the run.py CLI utility.

The table below gives further details on each of these control plane tasks, and their corresponding Data plane actions:

Dag name format

Relationship to repo

Trigger

Data plane purpose

GroupBy Batch

chronon_group_by_batch_{team}

One DAG per team

Upstream data landing

Run batch uploads to the KV Store. Produce historic snapshots of GroupBy Data.

GroupBy Streaming

chronon_group_by_streaming_{team}

One DAG per team

Continuous

Run streaming jobs for realtime updates to KV Store.

StagingQuery

chronon_staging_query_batch_{team}

One DAG per team

Upstream data landing

Run StagingQuery batch computation.

Join Computation

chronon_join_{team}__{join_id}

One DAG per Join

Upstream data landing

Run Join backfill/frontfill.

Join Consistency

chronon_online_offline_comparison_{join_id}

One DAG per Join

Upstream data landing

Run job that checks consistency between online and offline values.

Metadata

chronon_metadata_upload

One DAG

Daily

Upload necessary metadata to the KV store to enable serving.

Here are a few code pointers that can be followed to get an even deeper understanding of each of these actions and their effect:

  1. run.py - this is a CLI utility that can be used to trigger control plane flows directly, however, it is also called by production DAGs for executing scheduled actions.

  2. Driver.scala - this is the driver on the Scala side which drives the corresponding data plane actions. Run.py calls Driver.scala to run Spark jobs.
